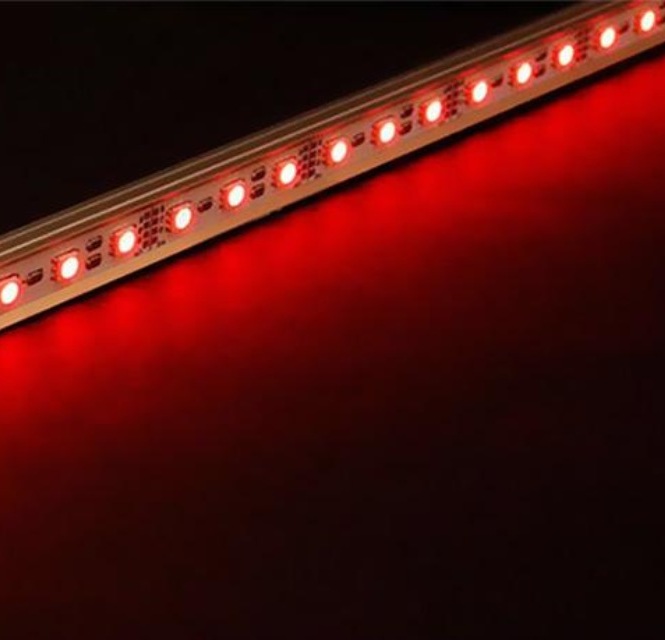

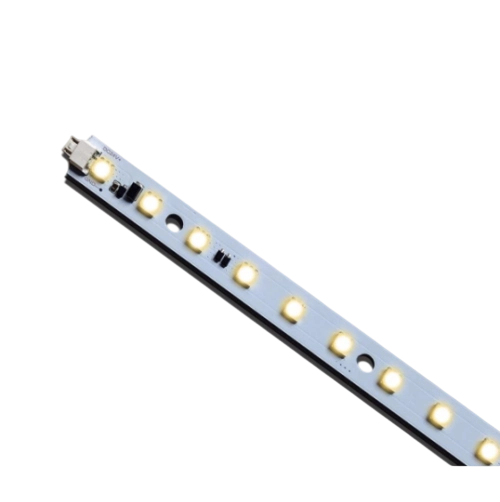

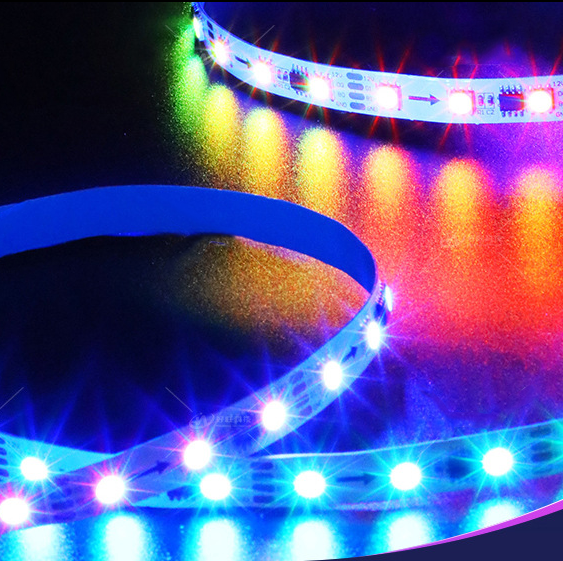

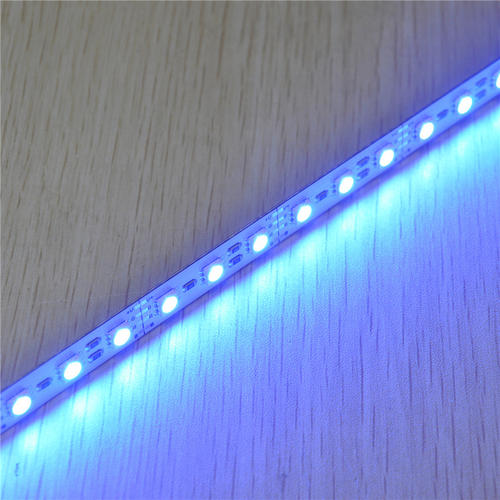

Available in two form factors: rigid light strips and flexible light strips. The rigid strips feature a compact structure and uniform light emission, making them ideal for linear lighting applications; the flexible strips can be freely bent and folded, catering to the requirements of complex contours.
Offers an extensive selection of colors, as well as a diverse range of dynamic lighting effects.
Supports custom specifications, including adjustable lengths, variable power densities, specialized color temperatures, the addition of adhesive backing or mounting clips, and specific waterproofing requirements.
Utilizes carefully selected, high-quality LED chips and PCB substrates to ensure high brightness, a high Color Rendering Index (CRI), and flicker-free illumination. Boasting exceptional electro-optical conversion efficiency, these products are energy-efficient and eco-friendly, containing no harmful substances such as mercury. Rigorously tested, the products demonstrate outstanding resistance to vibration and moisture.
Specification
| Product Type | LED Rigid Light Bar / LED Flexible Strip (Soft Strip) |
| Voltage | 12-24V |
| Emitting Color | Monochromatic Series: Warm White / Pure White / Red / Green / Blue / Yellow, etc. | Full-Color Series: RGB / RGBW (Supports color adjustment via remote control/controller) |
| LED Chip Model | Standard: 2835 / 3528 / 5050 / 5730 (Customization available) |
| Working Voltage | DC 12V or DC 24V (Safe low voltage; select models support AC high voltage) |
| Power | 4.8W/m ~ 19.2W/m (Customized based on LED density and model) |
| Material | Rigid Light Bar: Aluminum substrate / PCB board | Flexible Strip: FPC flexible circuit board + PVC sleeving (IP65/IP67 waterproofing optional) |
| Dimensions | Rigid Light Bar: Width typically 8mm/10mm/12mm (Customizable) | Flexible Strip: Board width 5mm/8mm/10mm, thickness 2mm/3mm |
| IP Rating | IP20 (Indoor, bare board) / IP65 (Waterproof sleeving) / IP67 (Silicone potting/encapsulation) |
| Beam Angle | 120° (Wide-angle illumination, uniform light distribution) |
| Operating Temperature | -20°C ~ +50°C |
| Installation Method | Self-adhesive backing (3M tape), mounting clips/channels, bracket screw-fixing |
| Certifications | CE / RoHS / FCC (Compliant with safety standards) |
